Product Features:
●Stable and Durable Perfect Partner
●Compatible with More High-performance Processors

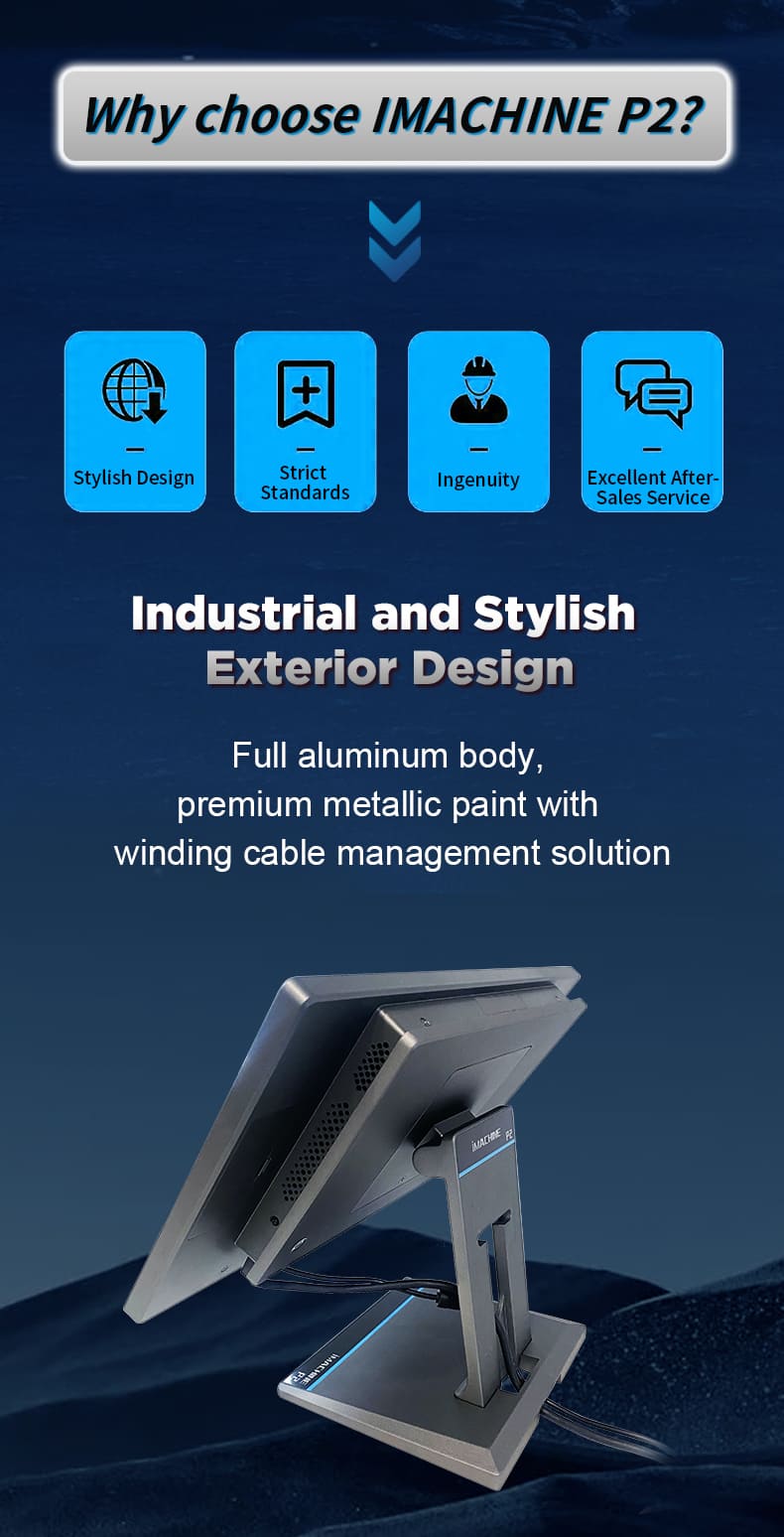

●Industrial and Stylish Exterior Design
●Plenty of Peripheral Support and Rich I/O Interface

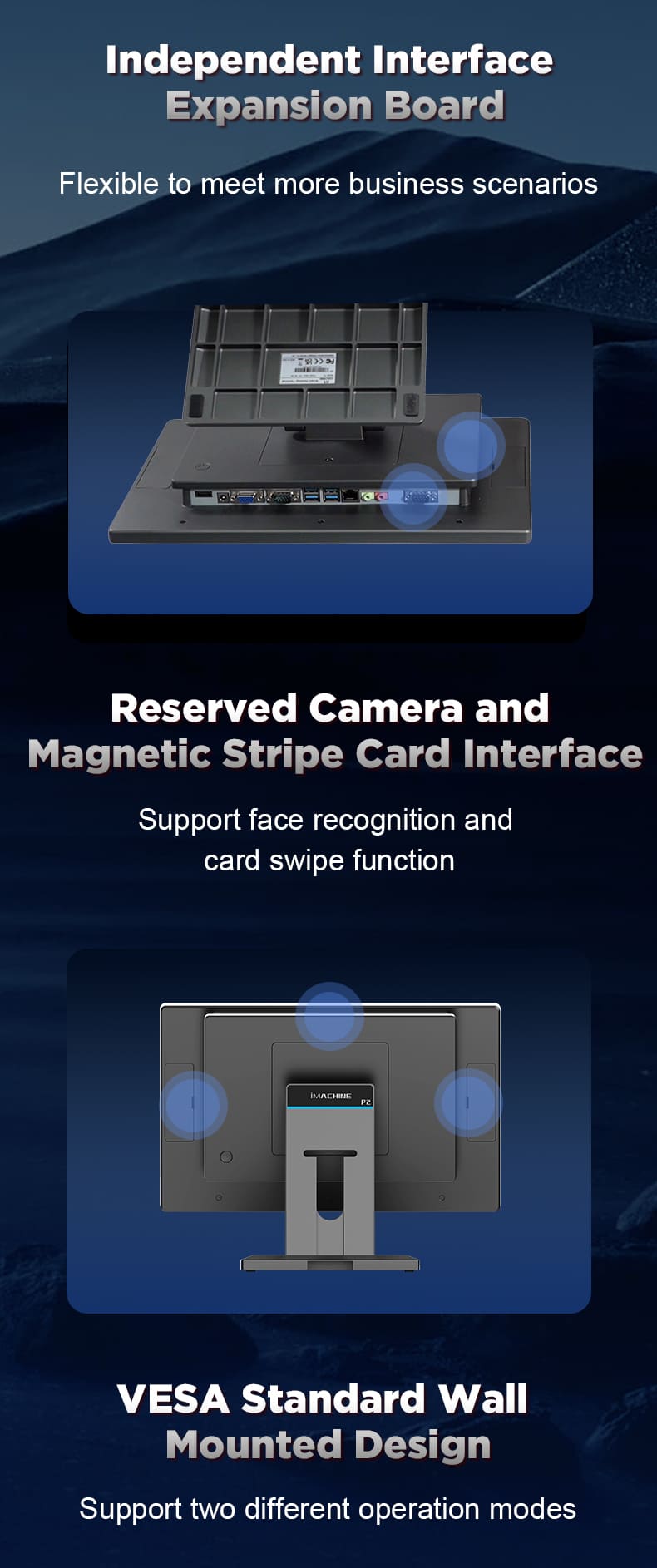

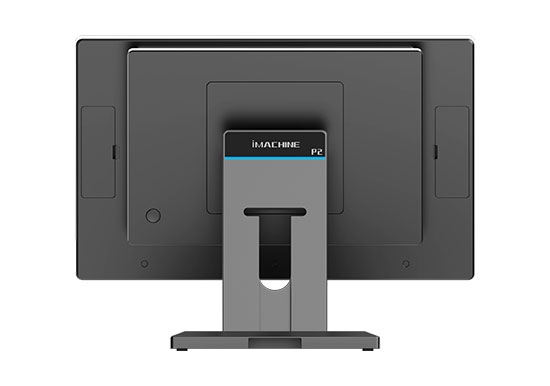

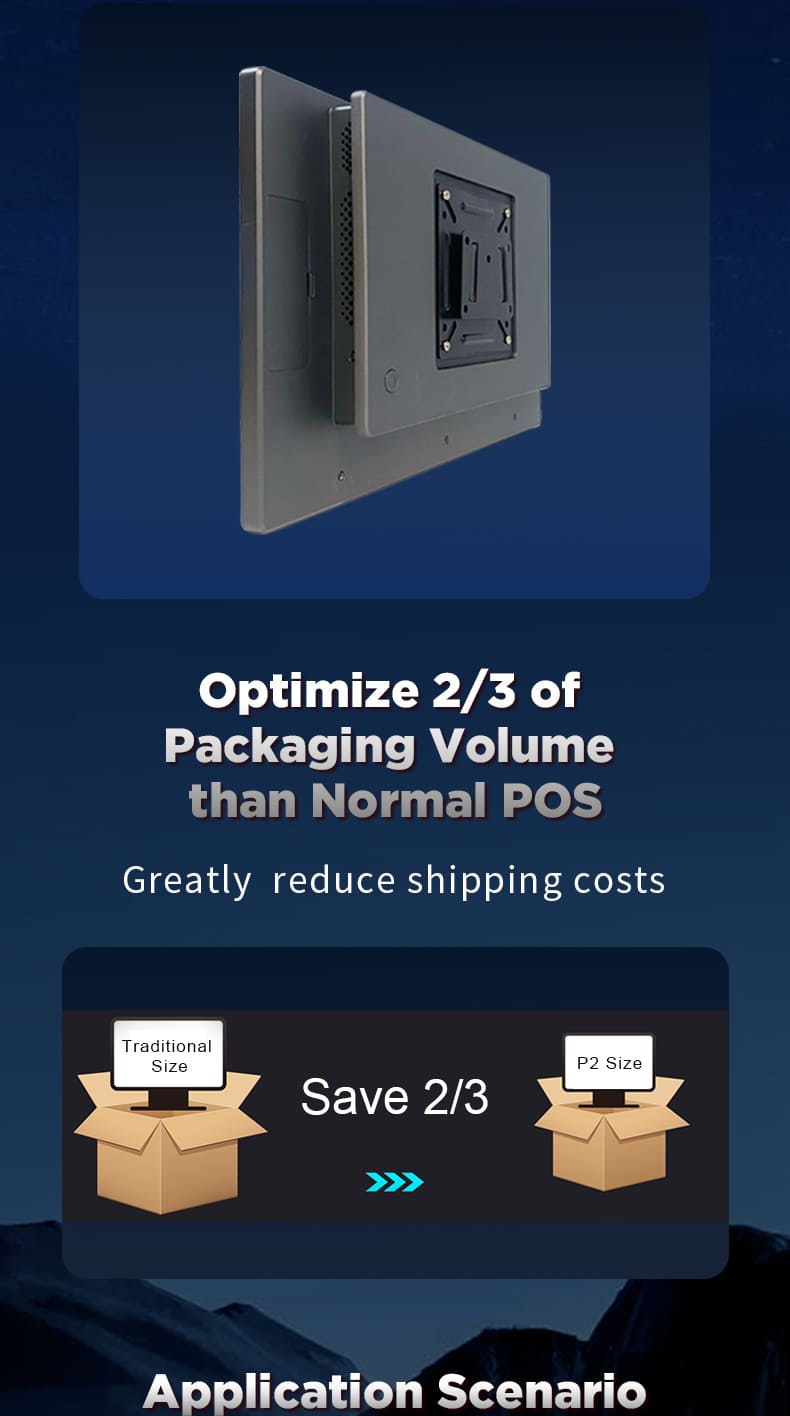

●Wall Mounted Design that Meets VESA Standards

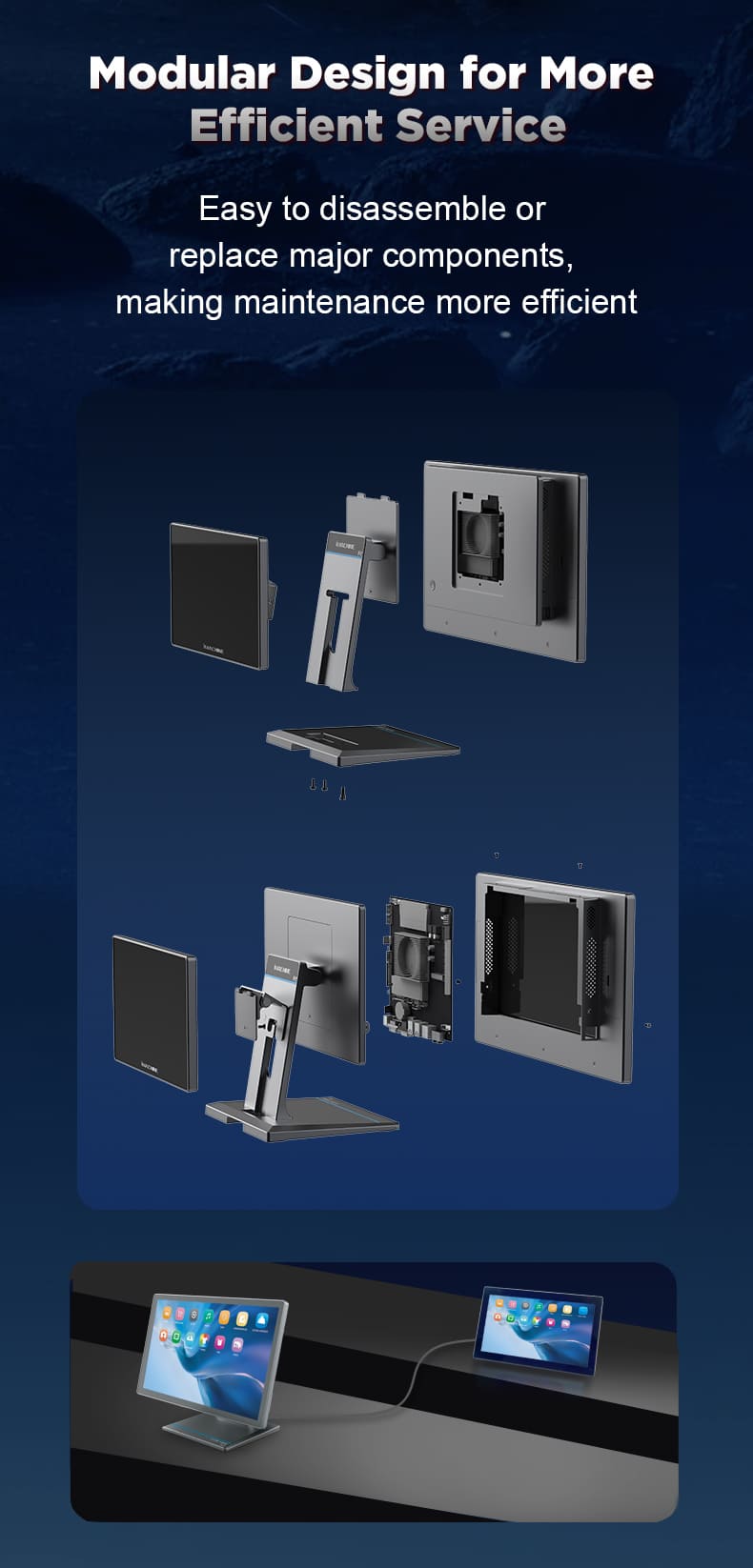

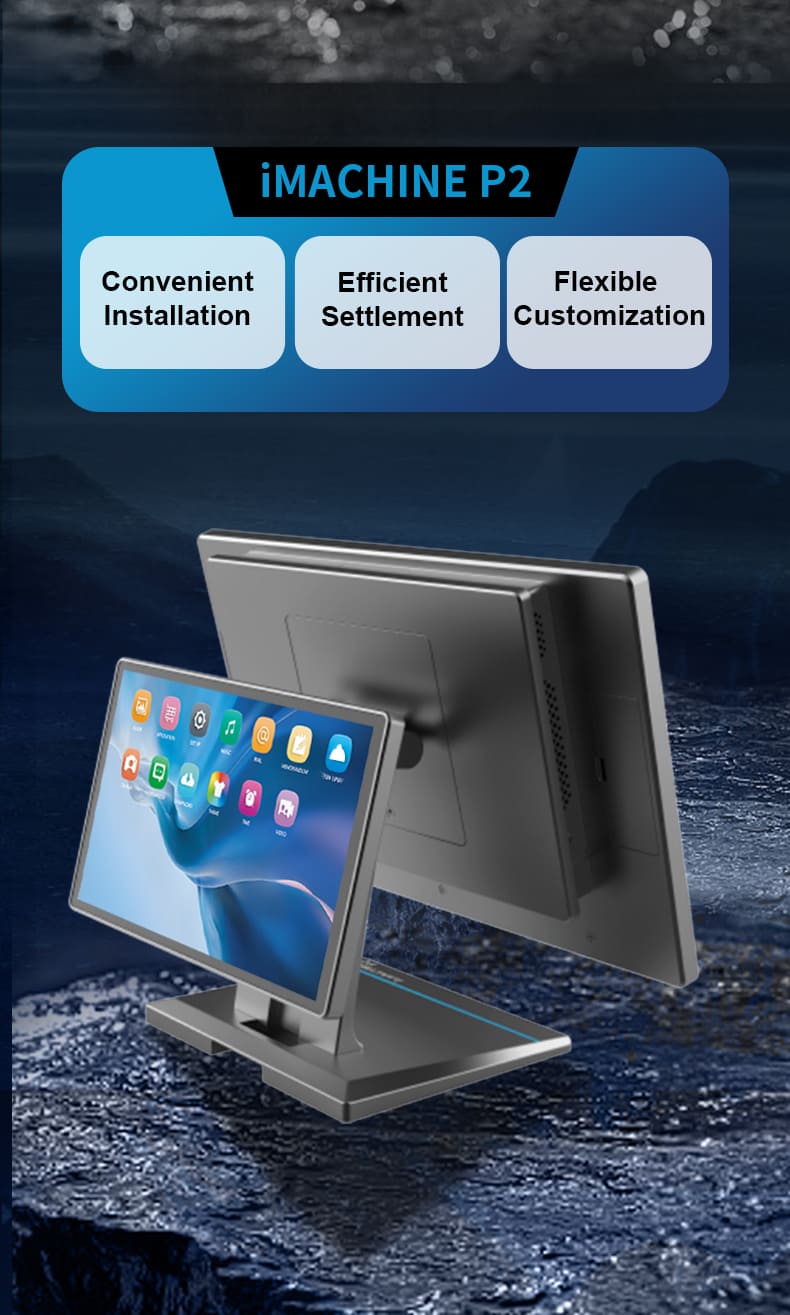

●Modular Design, Efficient User Service and Extendable 2nd Display
Product parameters:
|
Performance Characteristics |
CPU |
Intel Celeron J6412, Core 4th/8th/11th series |
|
OS |
Windows 11/10 |
|
|
Memory |
4/8/16GB DDR +128/256/512GB SSD |
|
|
Physical Characteristics |
Main Display |
15.6”FHD 1920×1080 15.6”HD 1366×768 (optional) Capacitive Multi-Touch Screen |
|

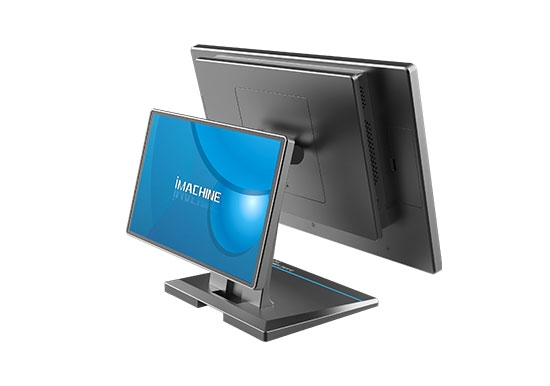

2nd Display |
10.1”1024×600（optional） |
|
|
USB |
6 x USB |
|
|
COM |
2 x DB9 |
|
|
Display Interface |
1 x HDMI |
|
|
Ethernet Interface |
1 x RJ45 |
|
|
Audio Jack |
1 x Headset Jack 1 x Microphone interface |
|
|
Power Interface |
1 x φ5.5mm DC Jack |
|
|
Key |
Power key |
|
|
Notification |
Tone, Power indicator |
|
|
Audio |
2 x Speaker (2W) |
|
|
Dimensions |
380mm x 186mm x 288mm |
|
|
Network Connection |
Wired LAN |
Ethernet TCP/IP 1000M |
|
Wireless LAN |
2.4&5GHz dual-band Wi-Fi IEEE 802.11 a/b/g/n/ac |
|
|
Wireless PAN |
BT4.2 + BLE |
|
|
User Environment |
Operating Temp. |
0℃ ～+40℃ |
|
Storage Temp. |
-20℃ ~ +60℃ |
|
|
Humidity |
5% ~ 95%RH（No condensation） |
|
|
Accessories |
Standard |
Power Adapter (12V 4A)×1 |
|
Optional |
Face Recognition Camera MSR NFC |
|
|
Note |
1. Physical interfaces of different processors may be different, please take the physical goods shall prevail. 2. The version of Window OS is not activated, please buy license from Microsoft.com when needed. |
|
