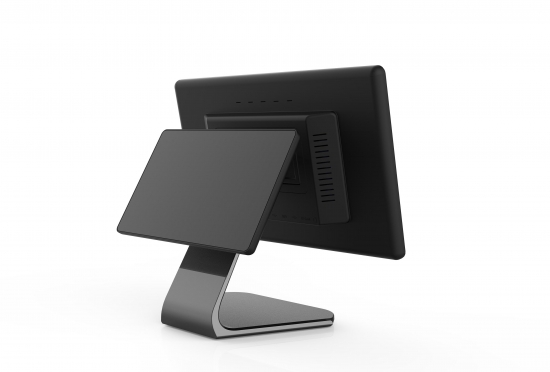

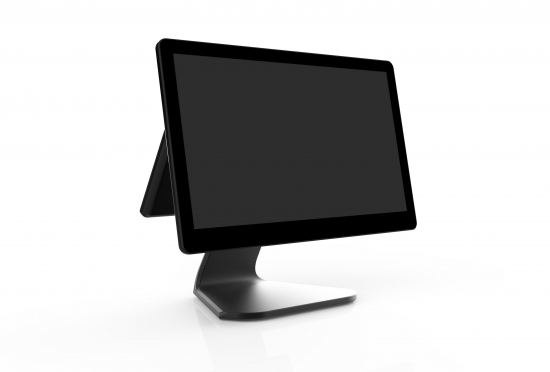

P1 Windows Desktop POS Terminal

Performance Parameters

CPU

Intel Celeron J6412

Intel Core i3 Series

Intel Core i5 Series

OS

Windows 11/10

Memory

4/8GB DDR+64/128/256/512GB SSD

Physical Parameters

Main Display

15.6”FHD Capacitive Multi-Touch Screen, 1920*1080

Customer Display（optional）

10.1”HD 1024×600

USB

2 x USB3.0 + 3 x USB2.0

Serial Port

1 x DB9

Ethernet Interface

1 x RJ45

Display Interface

1 x VGA

Audio Jack

1 x 3.5mm Headphone Jack

1 x 3.5mm Microphone Jack

Power

1 x φ5.5mm DC Jack

Key

Power key

Notification

Tone, LED

Audio

1 x Speaker

Dimensions

379mm×179mm×313mm

Wireless Data Communication

Ethernet

TCP/IP 100M/1000M

Wi-Fi（optional）

IEEE 802.11 b/g/n，2.4GHz

Bluetooth（optional）

Bluetooth BT4.2 + BLE

Environment Parameters

Working Temperature

0℃ ～+40℃

Storage Temperature

-20℃ ~ +60℃

Humidity

5% ~ 95%RH（No condensation）

ESD

±8 kV air discharge，±4 kV direct discharge

Accessories

Standard

Power Adapter×1

Optional

Face Recognition Camera

MSR

NFC

Note

1.    Physical interfaces of different processors may be different, please take the physical goods shall prevail.

2.    The version of Window OS is not activated, please buy license from Microsoft.com when needed.
