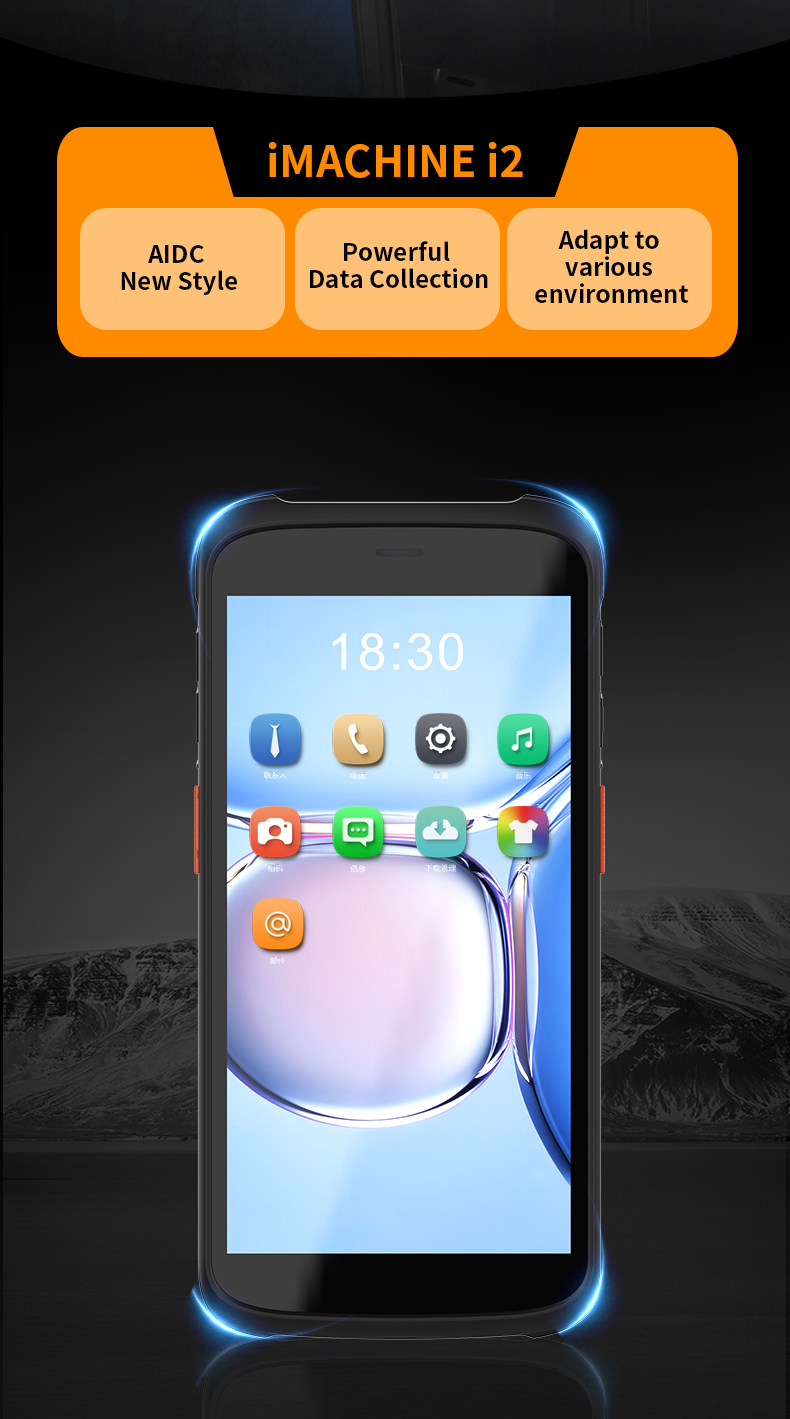

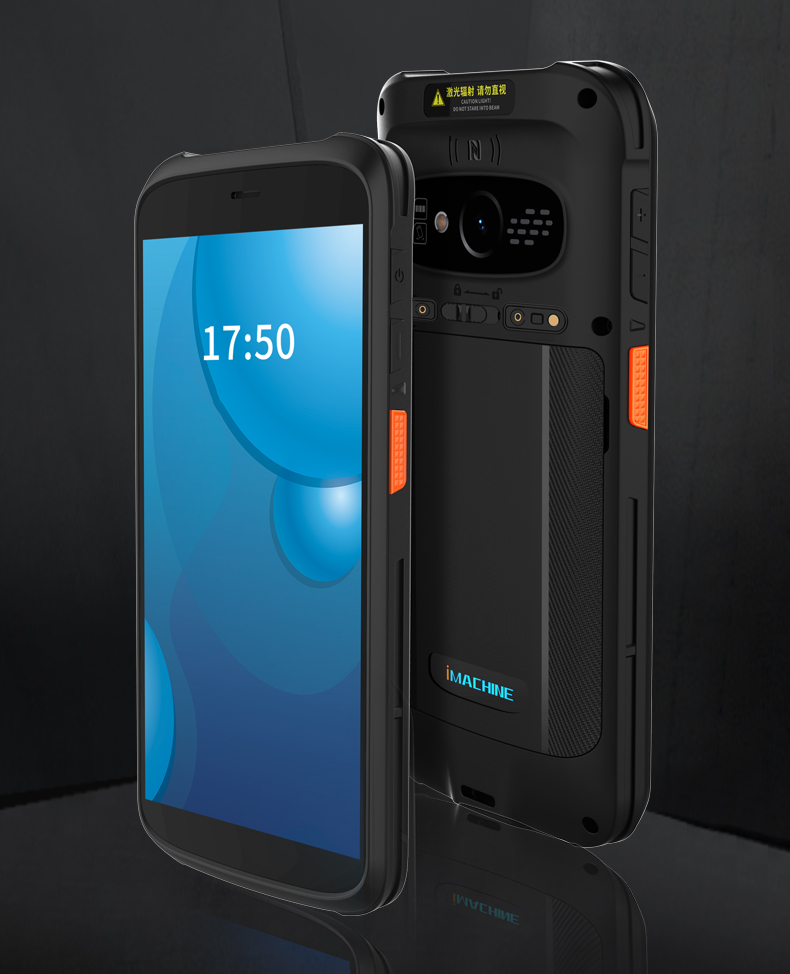

i2 Handheld Data Terminal

i2 is a new generation of high performance, multifunctional PDA launched by iMACHINE, with fully performance and experience feeling. The screen is 5.5inch HD, which is portable and comfortable to hold. It has more stable connection, richer match, super industrial protection performance, fully meet the needs of industrial applications.

i2 is perfectly suit to many scenarios, such as logistics, express, warehouse inventory, manufacturing, retail e-commerce, public utilities, asset management etc. The goal is to improve the operation and management level with efficiently data collection.

  • Product Features
  • Product parameters
  • Product Details

Product Features:

● New High Performance PDA

● Octa-core 2.0GHz/2.3GHz High-performance Processor

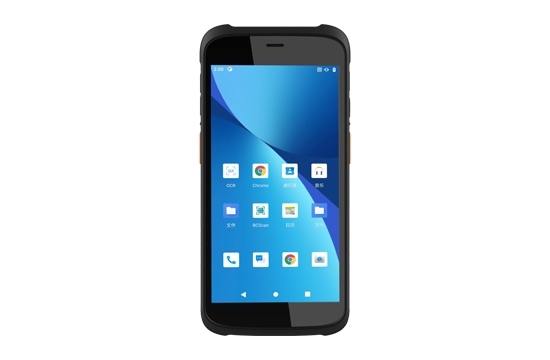

● 5.5 inches 720P Narrow Border Large Screen

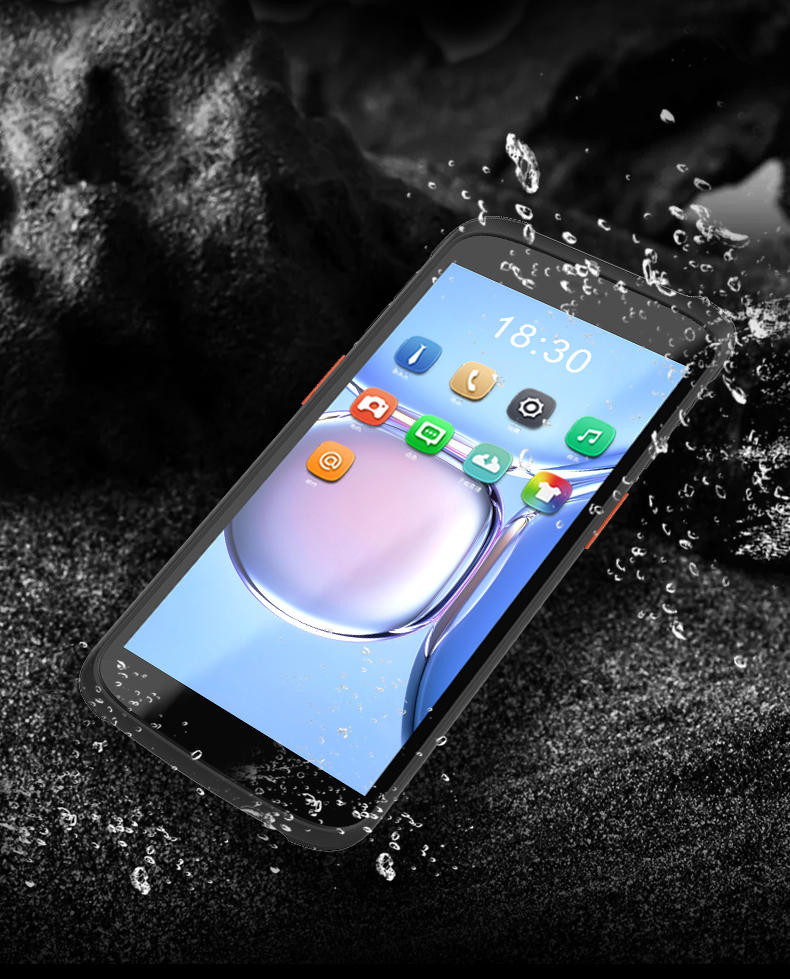

● IP68 Protection and 1.5m Drop Spec

● Removable 5000mAh High-capacity Battery with Backup Supported

● Compatible with Multi-brand Professional Scanner

Product Parameters:

Performance Characteristics

CPU

ARM Cortex-A53, Octa-Core 2.0GHz/2.3GHz

OS

Android 11.0/13.0

Memory

4GB RAM+64GB ROM/3GB RAM+32GB ROM (optional)

SIM Card Slot

2 x Nano SIM Cards

Storage Expansion

1 x Micro SD Card,(SDHC、SDXC supported, up to 512GB)

Physical Characteristics

Display

5.5”HD+ IPS 720×1440p, Industrial grade Capacitive Multi-Touch

Battery

Removable Lithium Battery, 3.85V/5000mAh

Backup battery

Support hot swap the battery, device keep working (optional)

Dimensions

157.8mm×75.5mm×14.9mm

Weight

250g (with battery)

Ports

USB Type C ( support USB 2.0, OTG, Fast charging)

Expansion Ports

2 Pin Rear POGO PIN:Trigger key

2 Pin Bottom POGO PIN:Charging port

Keys

1×Power key , 1×Volume(+/-) key, Function key,  2×Scan keys

Prompts

Vibration,Multi-Color LEDs,Audio

Audio

Speaker, Receiver, Dual Microphones (noise reduction)

Sensor

G-Sensor, Light Sensor, Proximity Sensor

E-compass (optional), Gyroscope (optional)

Data Capture

Scan Engine

MinDeo: ME8601/ME5066     Newland: CM60

Honeywell: N6703/N6603/HS7     Zebra: SE4770/SE4720/SE4710

Camera

Rear camera: 13 Megapixels, flash support, auto focus

Front camera: 5 Megapixels, fixed Focus

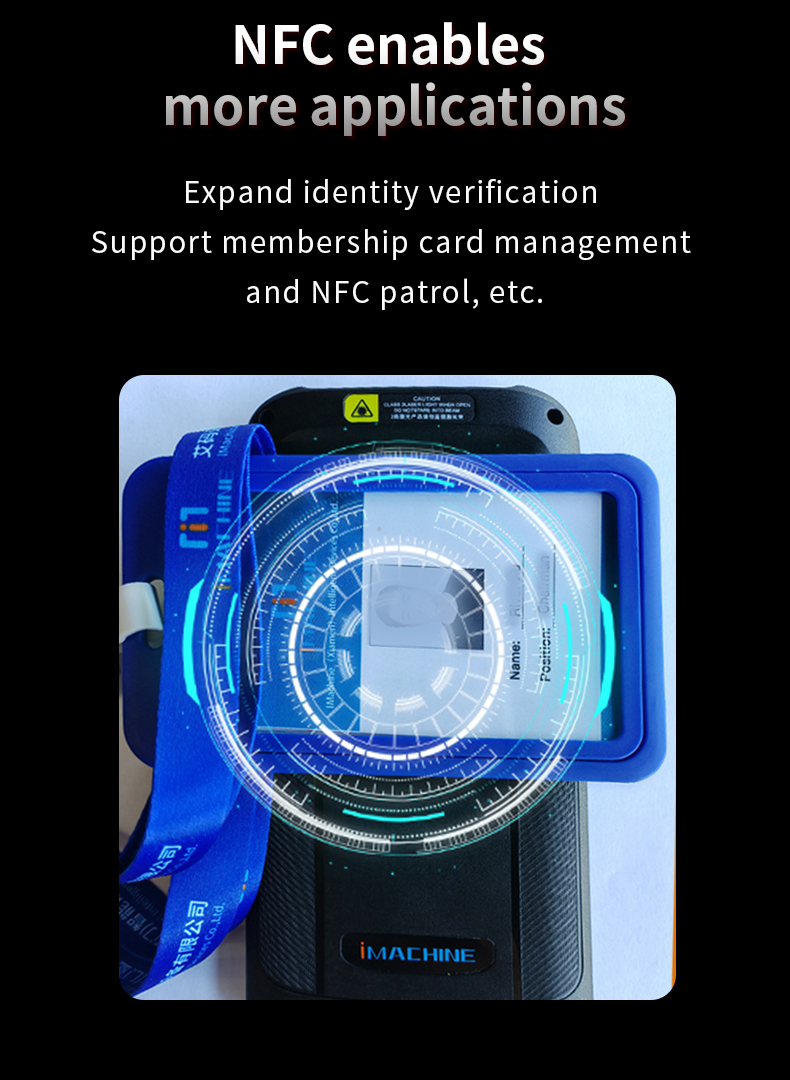

NFC

Support ISO15693, ISO14443A/B, Mifare card, Felica card

Network Connection

Wireless WAN

Eurasian

4G:B34/B38/B39/B40/B41/B1/B3/B5/B7/B8/B20/B28A/B28B

3G:B1/B5/B8/B34/B39

2G: 850/900/1800/1900

American

4G:B38/B41/B1/B2/B3/B4/B5/B7/B12/B17/B19/B26/B28A/B28B/B66

3G: B1/B2/B4/B5/B8

2G: 850/900/1800/1900

Wireless LAN

2.4GHz & 5GHz dual-band Wi-Fi, support 802.11r fast roaming

IEEE 802.11 ac/a/b/g/n/ax ready/d/e/h/i/j/k/r/v/w

Wireless PAN

BT5.0 + BR/EDR + BLE

GPS

GPS L1, GLONASS, Beidou, Galileo

User

Environment

Operating Temp.

-20℃ ~+60℃

Storage Temp.

-40℃ ~ +70℃

Charging Temp.

0℃ ~ +45

Humidity

5%-95% RH (No condensation)

Sealing Standard

IP68

Drop Spec.

1.5m

Tumble Spec.

1000 drops (500 cycles) 0.5m tumbles at room temperature

ESD

±15 kV Air Discharge, ±8 kV Direct Discharge

Accessories

Standard

Power Adaptor×1, USB Cable×1, Battery×1

Optional

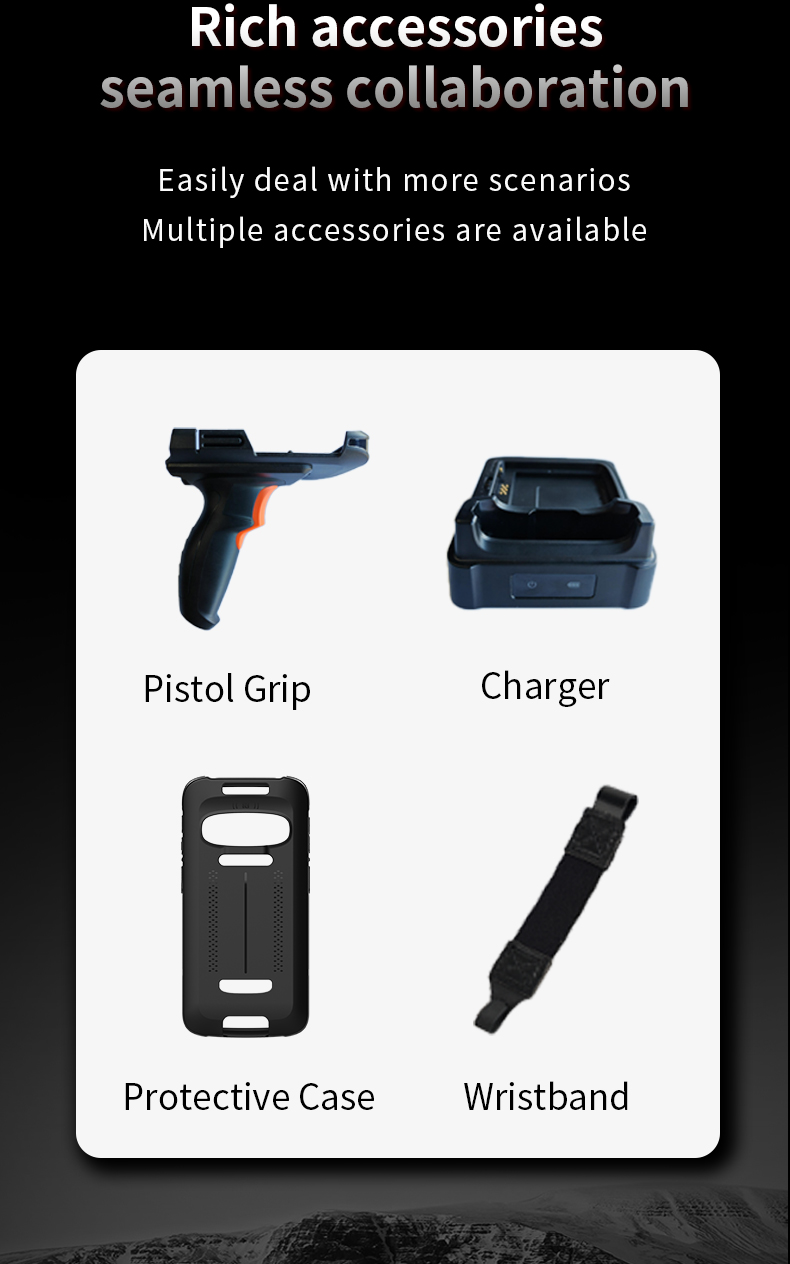

Lanyard, Hand strap, Cradle, Pistol Grip, Protective Case, Four-battery Charger




  • Octa-core 2.0GHz high-performance processor, coupled with Android 11.0 operating system, brings an extraordinary experience.
  • 4G full Netcom + high-speed Wi-Fi ensure unimpeded data transmission. Stay connected anytime, anywhere, whether indoor or outdoor.
  • 3-in-1 triple positioning set-up meets the precise positioning needs of express pick-up and delivery.

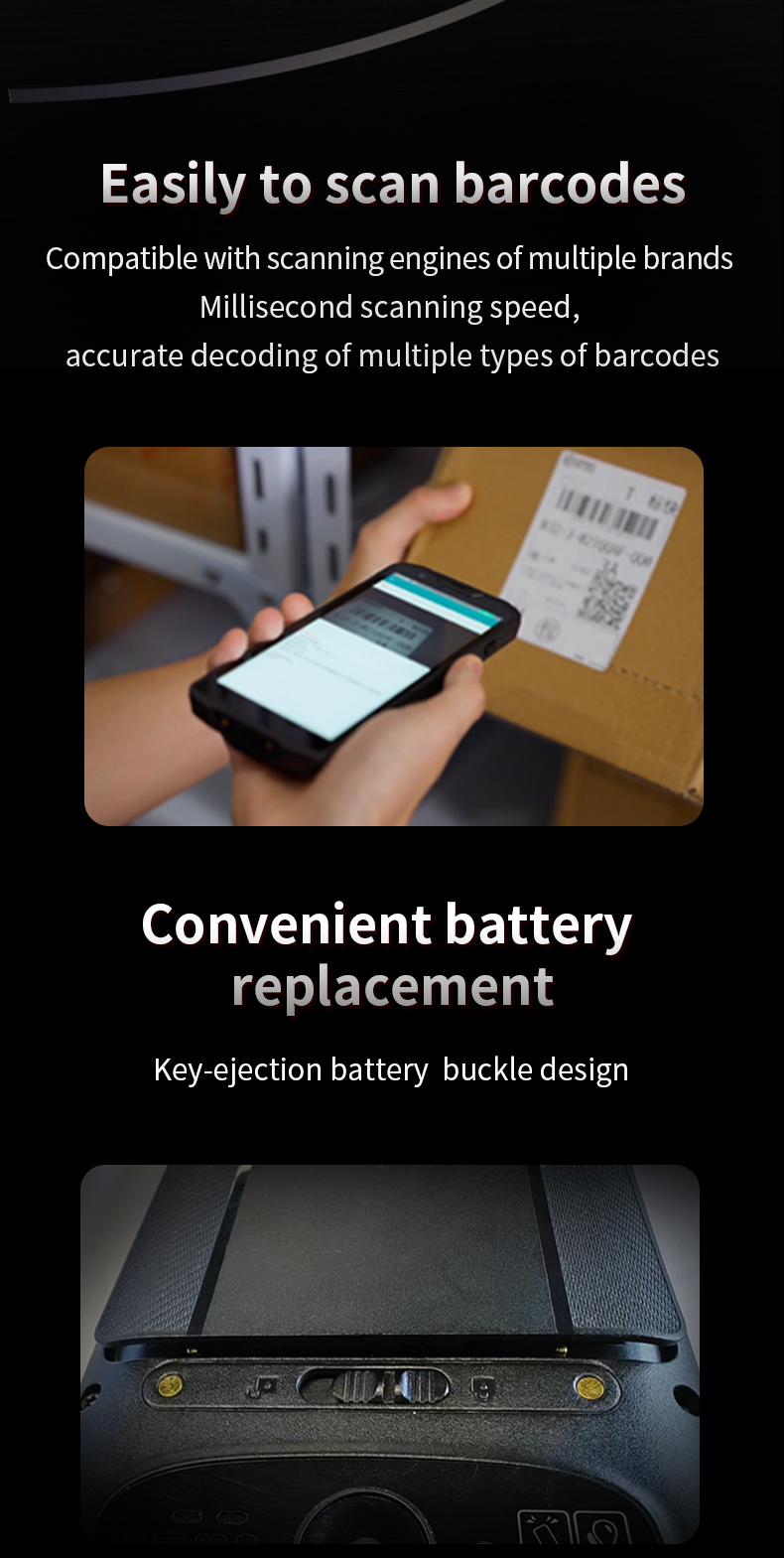

  • Achieving accurate data reading at wider scanning range and longer scanning distance.
  • Industry-leading scanning capability to accurately read defaced codes, worn-out codes, distorted codes, DPM codes, and codes displayed on screens;
  • 5000mAh high-capacity battery coupled with 18W fast charging, free from power-off anxiety;
  • 5.5-inch large screen with narrow borders, offering unobstructed view;
  • Clear visual effect under strong sunlight, facilitating outdoor work;
  • Multiple touch screen, supporting operation with gloves and wet hands, without compromising performance under harsh environment such as cold and rainy days.
  • Dual cameras: 500W front camera + 1300W auto-focus rear camera;
  • Anti-drop body with industrial-grade one-piece molding, anti-drop of 1.5 meters on concrete floor at any angle;
  • Ergonomic design, with grip lighter, thinner and more comfortable;
