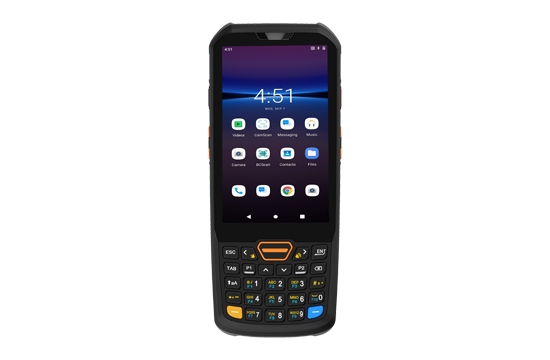

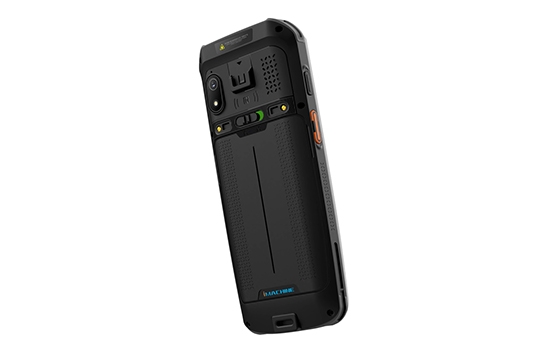

TK02 Smart Handheld Data Terminal

iMACHINE TK02 is a slim, portable, high-performance, highly stable, rugged, feature-rich intelligent handheld data terminal that can be operated by one hand. It aims to provide more dexterous mobile productivity solutions for special scenes, not only has a lightweight and compact body design but also has the flagship configuration and performance.

iMACHINE TK02 can be widely used in logistics express, retail, manufacturing, public utilities and other fields, can be used as retailers super inventory handheld PDA, can also be used as a logistics express scanning gun.

  • Product Features
  • Product parameters

Product Features:

Powerful performance and smooth experience

Octa-core 2.0GHz high-performance processor brings extraordinary experience and greatly improves computing performance;

With the large running memory and Android 11 operating system, you can easily cope with the needs of multiple programs running at the same time, and it remains smooth as new for a long time.

4G full network + high-speed Wi-Fi, unimpeded data transmission

Dual SIM dual standby 4G full network, no matter you are indoors or outdoors, you can always stay connected anywhere

2.4G/5G dual frequency band professional Wi-Fi, strong anti-interference ability, faster transmission speed, more stable back connection, seamless roaming;

The triple positioning of GPS+ Beidou +Glonass has higher accuracy, which meets the precise positioning needs of the express delivery scene.

With professional scanning engine, fast code sweeping

Equipped with a variety of industry-leading scanning head engines, whether it is dirty code, old code, distorted code, DPM code, screen display code, can easily read;

Wide scanning range and scanning distance make the scanning code work more easily, without deliberate alignment can be accurately read;

Professional high bright scanning indicator design on the front, scanning perception at a touch, getting feedback at the first time.

Small size and large capacity, super endurance

5100mAh high-capacity battery design to meet the use of a whole shift, the battery removable design, can be quickly completed by changing the battery for operational status preparation;

The battery is designed with a one-touch eject able battery snap to change power as fast as lightning.

The golden ratio keyboard is super easy to operate with one hand

The size of the design is small, suitable for one hand grip design, more dexterous, work long hours without tiredness.

The core operation area has the golden section ratio, which makes scanning easier in different handheld modes;

The physical buttons feel soft and comfortable, reasonabllayout, it works better than you can imagine.

More durable and resistant to fall, no fear of harsh operating environment

Three anti grade up to IP68, whether in the field or field use, can effectively protect the body from dust and water erosion, reduce the equipment failure rate and extend the service life of equipment;

It can withstand the drop of 1.8m cement floor at any Angle. When the staff drops the hand-held equipment accidentally, there is no need to worry about the equipment. They can use the equipment normally by picking it up, effectively avoiding the delay caused to the work.


Product Parameters:

Performance Parameters CPU Octa-core 2.0GHz
OS Android 11.0
Memory 2GB RAM+16GB ROM/4GB RAM+32GB ROM(optional)
SIM Card Slot 2 x Nano SIM Card
Expansion Storage 1 x MicroSD Card(SDHC、SDXC supported,up to 512GB)
Physical Parameters Display 4" WVGA IPS, 480 x 800, Capacitive Multi-Touch, Glove mode support
Battery Removable Lithium Battery, 3.85V/5100mAh
Dimensions(L*W*H) 160mm×66.8 mm×16.8mm
Weight 245 g(with battery)

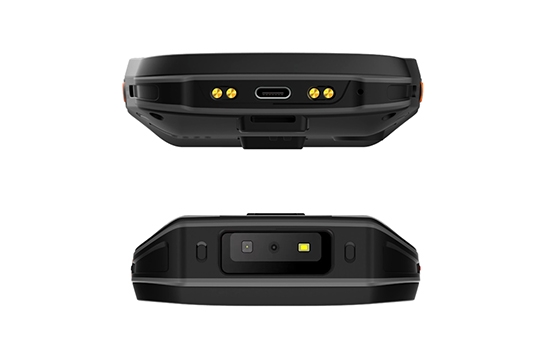

Ports 1×Waterproof Type C ( support USB 2.0, OTG, Fast charging)
Expansion Ports Back POGO PIN: Trigger handle
Bottom POGO PIN: USB 2.0, 5V/2A

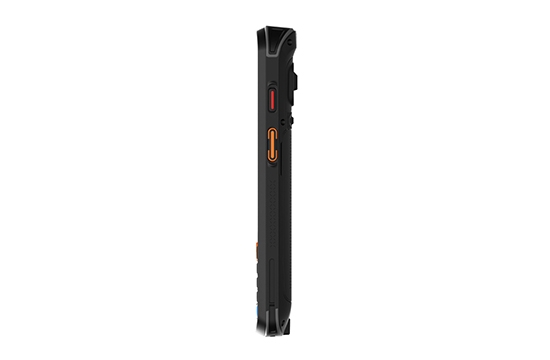

Buttons Side: 1×Power(lock screen) button, 1×custom button, 2 scan buttons
Front: 26×physical buttons( (including 2 FN buttons)
Prompts Vibration reminder/Multi-Color LED reminder/audio reminder
Audio Built-in Speaker (1.5W), Receiver, Dual Microphones (noise reduction)
Sensor G-Sensor(optional), Light Sensor(optional) ,Proximity Sensor(optional),Gyroscope(optional), E-compass (optional)
Environment Parameters Working Temperature -20℃ ~+60℃
Storage Temperature -40℃ ~ +70℃
Humidity 5% ~ 95%RH(No condensation)
Protection IP68
Drop Specification 1.8m
Roller Drop 1000 times of roller drops from a height of 0.5 meters (equivalent to 2000 impacts)
Electrostatic Protection ±15 kV air discharge, ±8 kV direct discharge
Data Collection 2D Scanning (optional) 1D and 2D Barcodes Reader
Image Capture Rear camera: 13/5 Megapixels, flash support, auto focus
Front camera (optional): 5 Megapixels, Fixed Focus
GPS GPS/Glonass/Beidou, support AGPS
NFC(optional) Support ISO15693, ISO14443A/B, Mifare card, Felica card
Support card reader, Point-to-point, Card simulation
Wireless Data Communication WWAN Eurasian and American Versions
Wi-Fi IEEE 802.11 ac/a/b/g/n/ax ready/d/e/h/i/j/k/r/v/w
2.4G/5G Dual-band Wi-Fi,Support fast roaming
Bluetooth BT5.0 + BR/EDR + BLE
Accessories Standard Power Adaptor×1, USB Cable×1, Battery×1
Option Hand strap, Cradle, Four-slot battery charger, Trigger handle, Fast charging adapter
