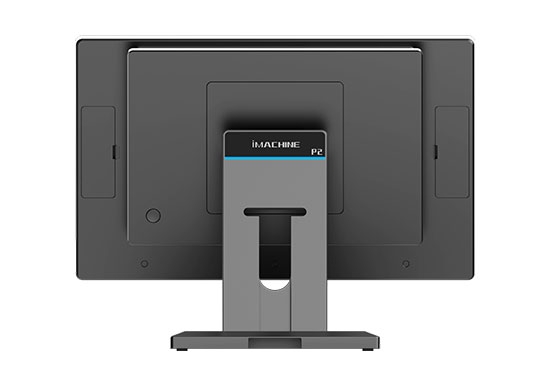

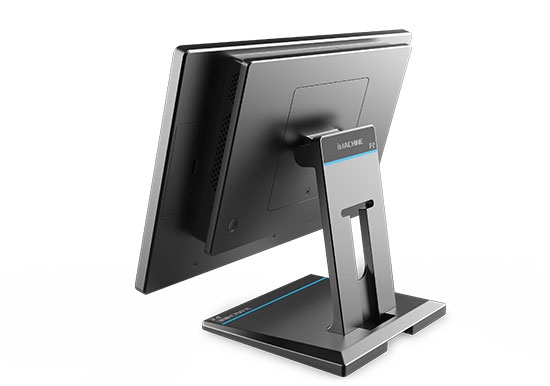

Product Features:
●Stable and Durable Perfect Partner
●Quad-core 2.0GHz ARM Cortex-A55 High-performance Processor

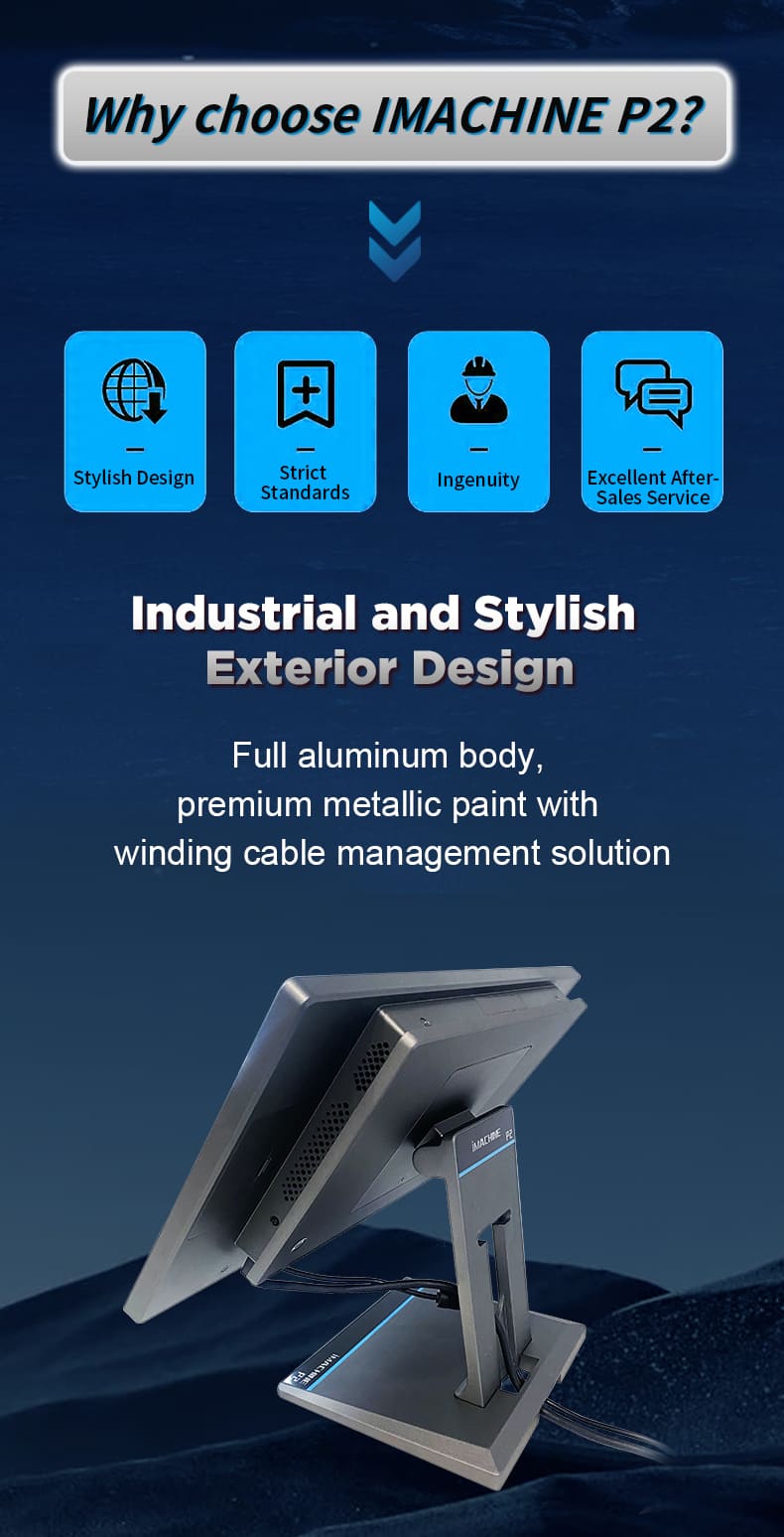

●Industrial and Stylish Exterior Design
●Plenty of Peripheral Support and Rich I/O Interface

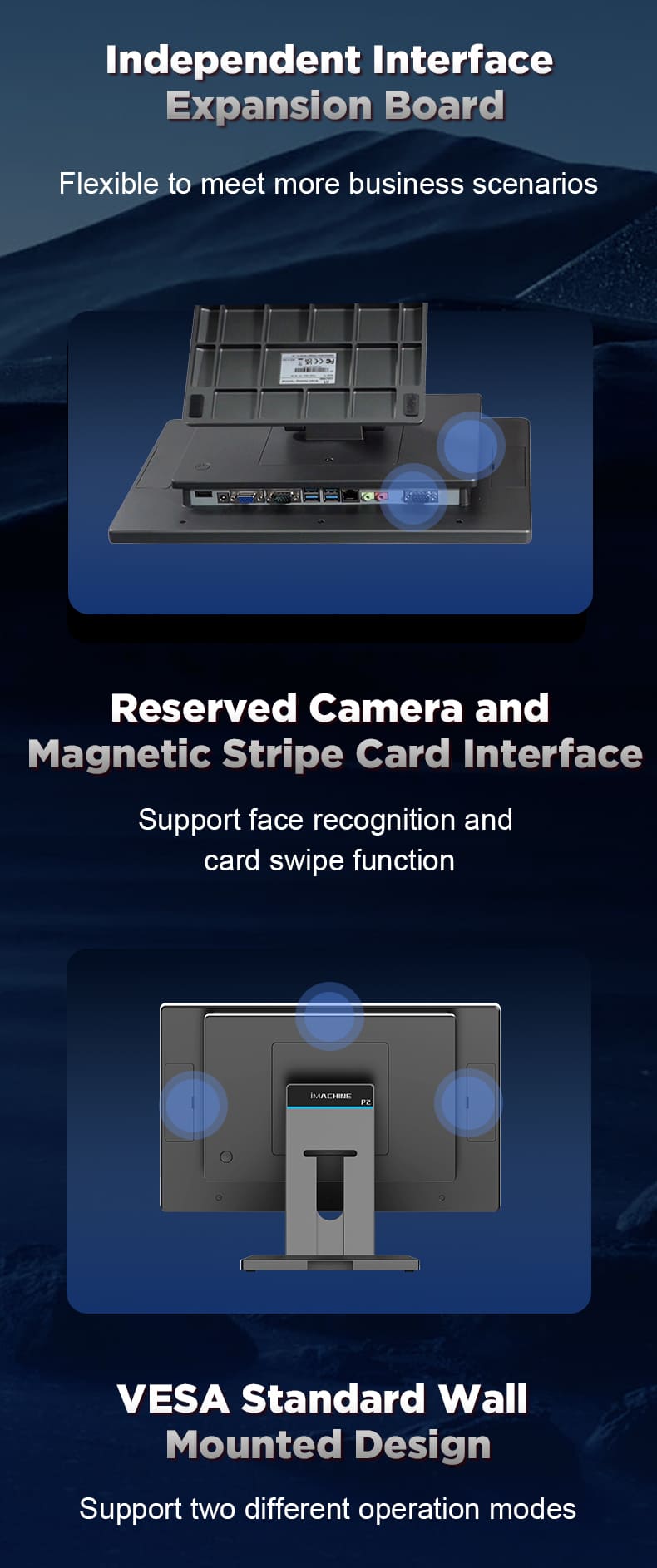

●Wall Mounted Design that Meets VESA Standards

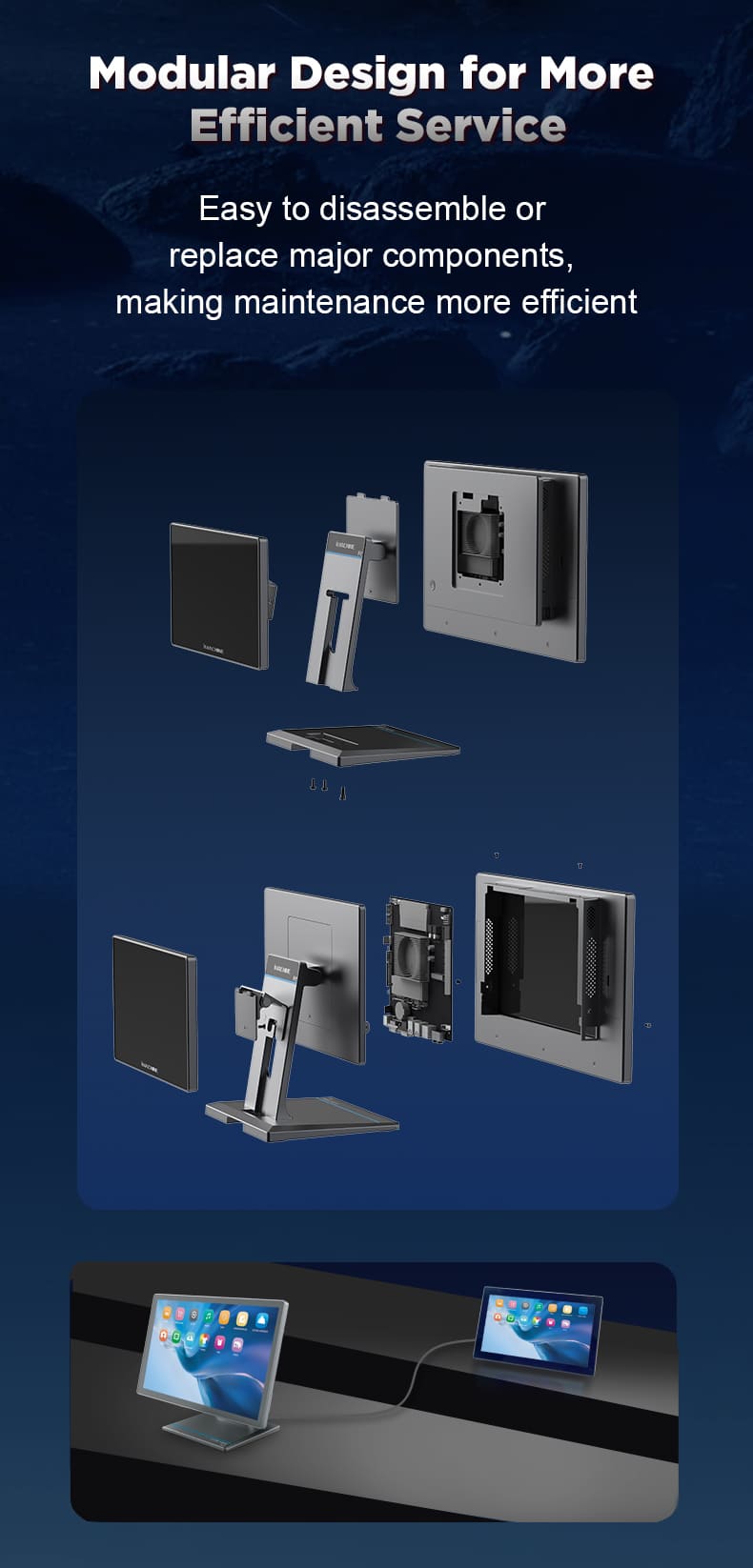

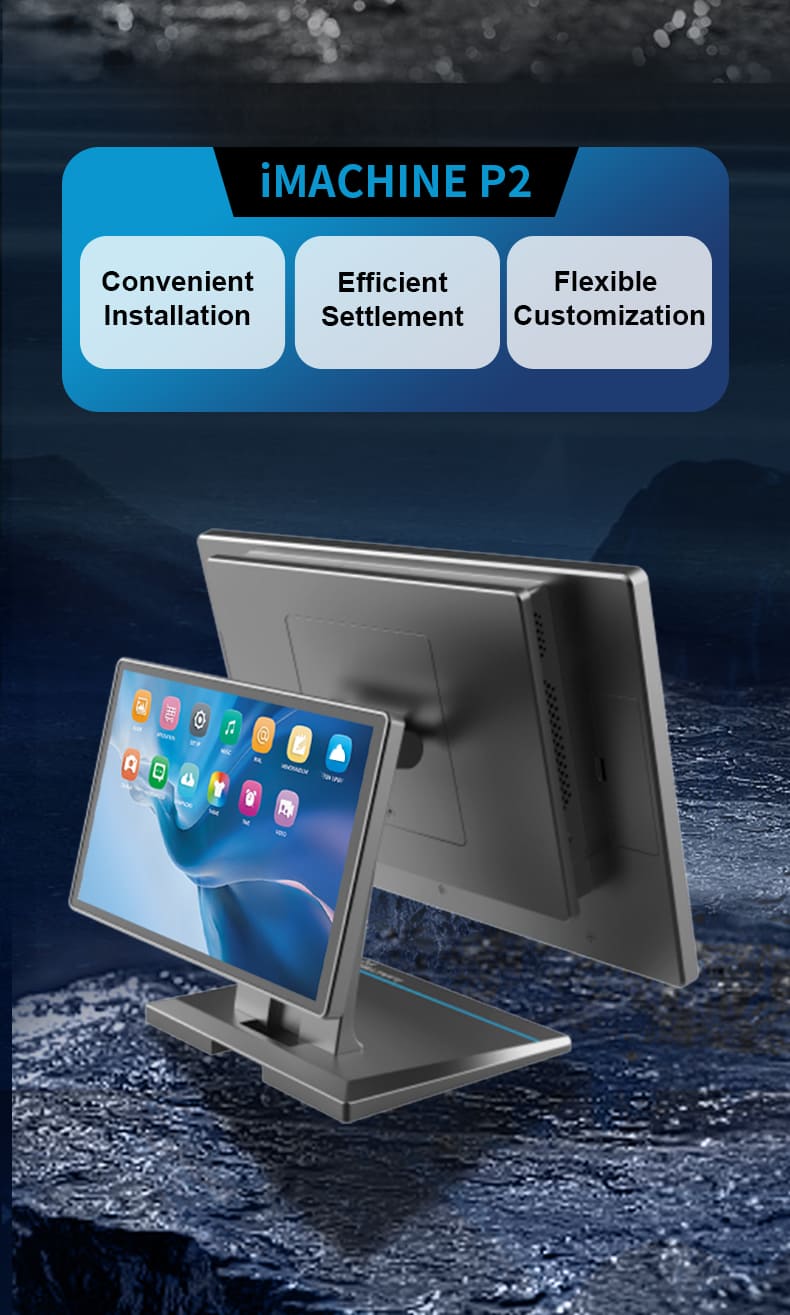

●Modular Design, Efficient User Service and Extendable 2nd Display
Product parameters:
|
Performance Characteristics |
CPU |
ARM Cortex-A55, Quad-Core 2.0GHz |
|
OS |
Android 11.0/13.0 |
|
|
Memory |
4GB RAM+64GB ROM 2GB RAM+16GB ROM (optional) 8GB RAM+128GB ROM (optional) |
|
|
Expansion Storage |
1 x Micro SD Card（up to 512GB） |
|
|
Physical Characteristics |
Main Display |
15.6”FHD 1920×1080 15.6”HD 1366×768 (optional) Capacitive Multi-Touch Screen |
|

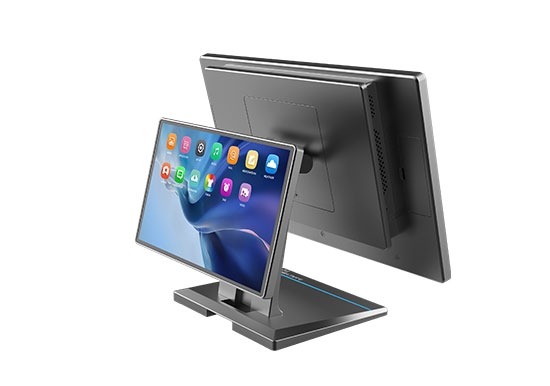

2nd Display |
10.1”1024×600（optional） |
|
|
USB |
6 x USB |
|
|
COM |
1 x DB9 + 1 x RJ11 |
|
|
Cash Drawer Interface |
1 x RJ12 |
|
|
Ethernet Interface |
1 x RJ45 |
|
|
Audio Jack |
1 x Headset Jack |
|
|
Power Interface |
1 x φ5.5mm DC Jack |
|
|
Key |
Power key |
|
|
Notification |
Tone, Power indicator |
|
|
Audio |
2 x Speaker (2W) |
|
|
Dimensions |
380mm x 186mm x 288mm |
|
|
Network Connection |
Wired LAN |
Ethernet TCP/IP 1000M |
|
Wireless LAN |
2.4&5GHz dual-band Wi-Fi IEEE 802.11 a/b/g/n |
|
|
Wireless PAN |
BT4.2 + BLE |
|
|
User Environment |
Operating Temp. |
0℃ ～+40℃ |
|
Storage Temp. |
-20℃ ~ +60℃ |
|
|
Humidity |
5% ~ 95%RH（No condensation） |
|
|
Accessories |
Standard |
Power Adapter (12V 4A)×1 |
|
Optional |
Face Recognition Camera MSR NFC |
|
|
Note |
Physical interfaces of different processors may be different, please take the physical goods shall prevail. |
|
