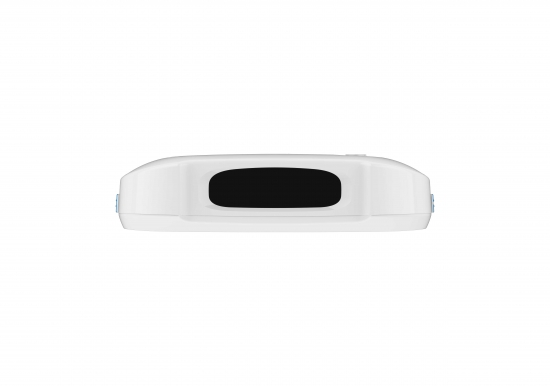

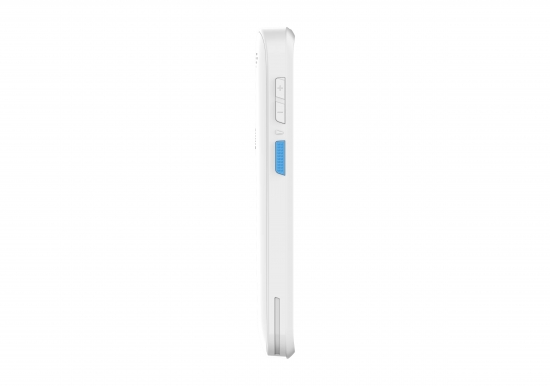

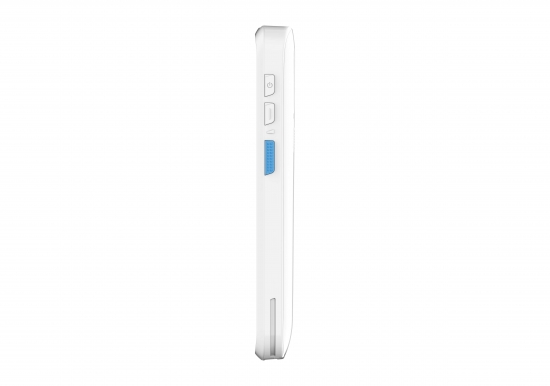

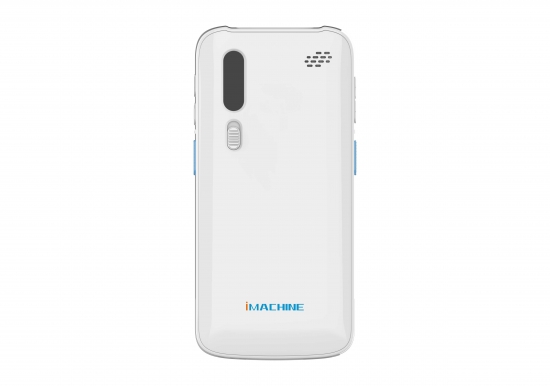

i2H Medical Mobile Data Terminal

i2H is a new generation of high-performance and multifunctional medical mobile data terminal launched by iMACHINE. It adopts a high-performance eight core processor and integrates various functions such as high-performance barcode scanning, UHF ultra-high frequency, pupil light, camera, etc. The configuration is first-class and the functions are diverse. The lightweight body is matched with a 5.5-inch full HD screen, with a beautiful appearance, portable and comfortable grip, sturdy and durable, and easy to operate. It uses antibacterial and alcohol resistant disinfection materials, which are more suitable for medical needs.

i2H is perfectly suitable for various application scenarios such as mobile healthcare, admission management, medical order execution, sample sampling, information query, drug supervision management, SPD material management, drug traceability, dispensing management, and medical waste management, helping medical staff efficiently obtain medical information and improve work efficiency.

  • Product Features
  • Product parameters

Product Features:

● The Best Partner for Medical Assignments

● Antibacterial and Sterilizable Materials

● Integrated Pupillary Lamp

● 5.5 inches 720P Large Touch Screen

● 4G Full Netcom and 2.4G&5G Dual-band Wi-Fi

● Dual Cameras and Professional Scan Engine

Performance Characteristics

CPU

ARM Cortex-A53, Octa-Core 2.0GHz

OS

Android 11.0

Memory

4GB RAM+64GB ROM/6GB RAM+128GB ROM (optional)

SIM Card Slot

2 x Nano SIM Cards

Storage Expansion

1 x Micro SD Card,(SDHC、SDXC supported, up to 512GB)

Physical Characteristics

Display

5.5”HD+ IPS 720×1440p, Industrial grade Capacitive Multi-Touch

Battery

Unremovable Lithium Battery, 3.85V/4500mAh

Dimensions

157.8×75.5×17.3mm

Weight

260g (with battery)

Ports

USB Type C ( support USB 2.0, OTG, Fast charging)

Expansion Ports

2 Pin Bottom POGO PIN:Charging port

Keys

1×Power key , 1×Volume(+/-) key, Function key,  1×Pupil light on key, 2×Scan keys

Prompts

Vibration,Multi-Color LEDs,Audio

Audio

Speaker, Receiver, Dual Microphones (noise reduction)

Sensor

G-Sensor, Light Sensor, Proximity Sensor

Pupil light

Yellow LED light

Data Capture

Scan Engine

MinDeo: ME8601(Default)/ME5066     Newland: CM60

Honeywell: N6703/N6603/HS7     Zebra: SE4770/SE4720/SE4710

Camera

Rear camera: 13 Megapixels, flash support, auto focus

Front camera: 8 Megapixels, fixed Focus

UHF (optional)

Engine: Based on Impinj E310 chip

Frequency: 920-925MHz

Maximum power: 1W (supports+19dBm~+30dBm adjustment)

Longest card reading distance: 1m

Network Connection

Wireless WAN

4G:B34/B38/B39/B40/B41/B1/B3/B5/B7/B8/B20/B28A/B28B

3G:B1/B5/B8/B34/B39

2G: 850/900/1800/1900

Wireless LAN

2.4GHz & 5GHz dual-band Wi-Fi, support 802.11r fast roaming

IEEE 802.11 ac/a/b/g/n/ax ready/d/e/h/i/j/k/r/v/w

Wireless PAN

BT5.0 + BR/EDR + BLE

GPS

GPS L1, GLONASS, Beidou, Galileo

User

Environment

Operating Temp.

-20℃ ~+60℃

Storage Temp.

-40℃ ~ +70℃

Charging Temp.

0℃ ~ +45

Humidity

5%-95% RH (No condensation)

Sealing Standard

IP68

Drop Spec.

1.5m

Tumble Spec.

1000 drops (500 cycles) 0.5m tumbles at room temperature

ESD

±15 kV Air Discharge, ±8 kV Direct Discharge

Accessories

Standard

Power Adaptor×1, USB Cable×1

Optional

Lanyard,Six-slots Cradle
