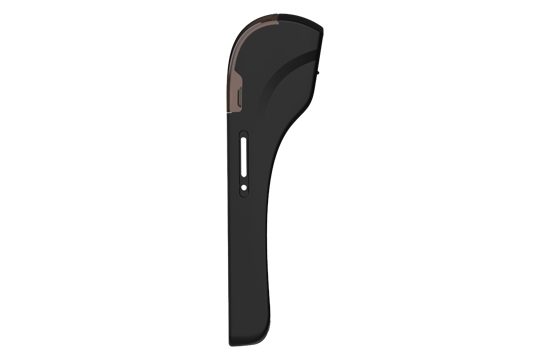

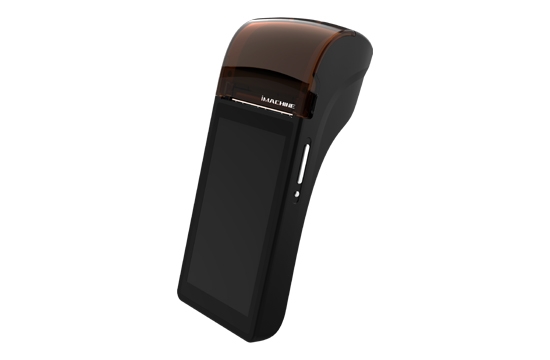

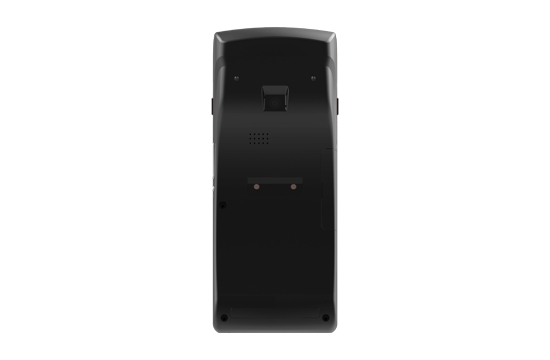

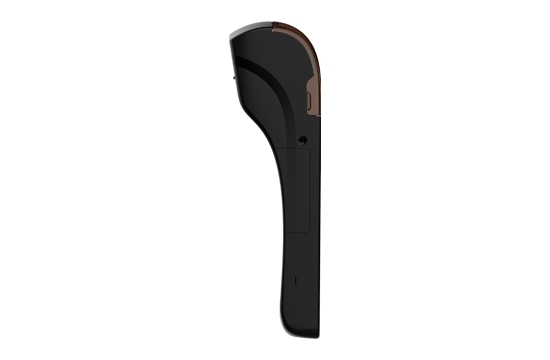

AP02 Mobile POS Terminal

1.Built-in 58mm thermal receipt printer

2.5 inches 480P capacitive touch

3.3G full network and 2.4GHz Wi-Fi

4.2MP/5MP rear camera

5.6000mAh high-capacity battery


  • Product Features
  • Product Details

Product Features:

1.Built-in 58mm thermal receipt printer

2.5 inches 480P capacitive touch

3.3G full network and 2.4GHz Wi-Fi

4.2MP/5MP rear camera

5.6000mAh high-capacity battery




Product parameters:

Performance Parameters

CPU

Cortex-A7 Quad-Core 1.3GHz

OS

Android 6.0/7.0/8.1

Memory

1GB RAM+8GB ROM

2GB RAM+16GB ROM (optional)

SIM Card Slot

1 x Micro SIM card

Expansion Storage

1 x Micro SD Card (up tp 32GB)

Physical Parameters

Display

5.0”HD, 480×854, Capacitive Touch

Battery

Unremovable Lithium Battery, 3.7V/6000mAh

Dimensions

192mm×80mm×24mm

Weight

350 g

Ports

1 x Micro USB

1 x φ3.5mm Earphone jack

Expansion Ports

Back POGO PIN5V/1A

Buttons

1×Power(lock screen) button

1×Volume(+/-) button

Notification

Tone

Audio

Speaker, Microphone

Built-in Printer

Paper Roll Width/Diameter58mm/40mm

Printing Speed50mm/s

Environment Parameters

Working Temperature

-10℃ ~+50

Storage Temperature

-20℃ ~ +60℃

Humidity

5% ~ 95%RHNo condensation

ESD

±10 kV air discharge±6 kV direct discharge

Data Collection

Camera

Rear camera 2/5 Megapixels

GPS

GPS

NFC (optional)

Support ISO/ICE14443ISO15693

Wireless Data Communication

WWAN

WCDMA(B1/B2/B5/B8)

GSM/EDGE/GPRS(850/900/1800/1900)

Wi-Fi

2.4GHz Wi-Fi

Support IEEE 802.11 b/g/n

Bluetooth

BT4.0

Accessories

Standard

Power Adapter×1, USB Cable×1

Optional

Base charger
