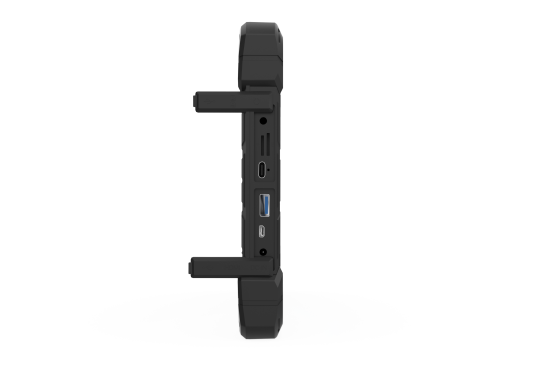

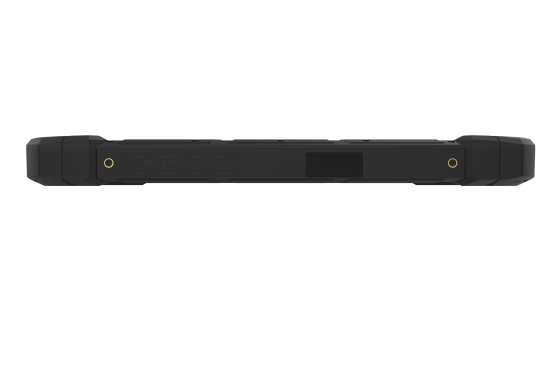

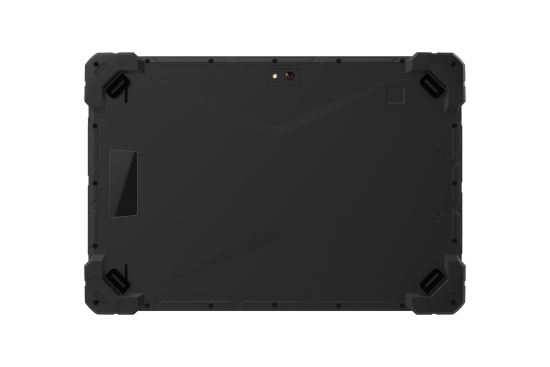

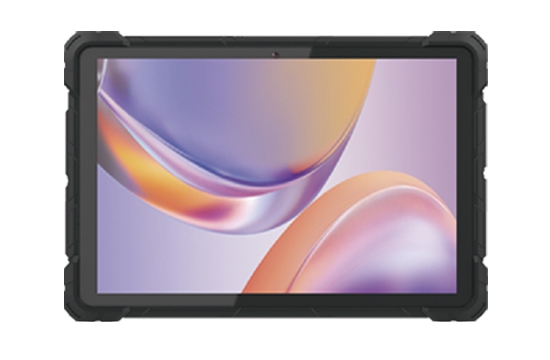

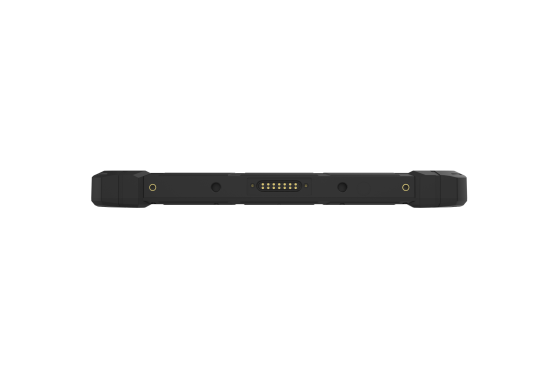

Product Features:
1.Industry-leading tablet, Powerful and rugged
2.Hexa-core high-performance processor
3.10.1" Full-fit TFT color screen
4.12000mAh durable high-capacity battery
5.IP67 sealing
6.Multiple peripheral interfaces
Product parameters:
Performance Parameters |
CPU |
RK3399 Dual-core Cortex-A72 + Quad-core Cortex-A53 |
OS |
Android 9.0 |
|
Memory |
4GB RAM+64GB ROM |
|
SIM Card Slot |
1 x SIM Card |
|
Expansion Storage |
1 x MicroSD Card (up to 128GB) |
|
Physical Parameters |
Display |
10.1”HD, 1280×800 , Industrial grade IPS, Capacitive multi-touch |
Battery |
3.7V/12000mAh |
|
Dimensions |
280mm×184mm×26.5mm |
|
Weight |
1.2 kg |
|
COM Port |
1 x DB9 (RS232) |
|
USB |
1 x USB3.0 + 2 x USB2.0 |
|
Ethernet Interface |
1 x RJ45 |
|
Audio Jack |
1 x 3.5mm Headphone jack |
|
HDMI |
1 x Micro HDMI 1.4 |
|
Power |
1 x DC Jack |
|
Prompts |
Multi-Color LED, Audio reminder |
|
Audio |
Speaker , Microphones |
|
Sensor |
G-Sensor |
|
Environment Parameters |
Working Temperature |
-10℃ ~+55℃ |
Storage Temperature |
-20℃ ~ +70℃ |
|
Humidity |
5% ~ 95%RH(No condensation) |
|
Sealing Standard |
IP67 |
|
ESD |
±15 kV air discharge, ±8 kV direct discharge |
|
Data Collection |
Scan Engine (optional) |
1D and 2D Barcodes Reader RAKINDA: LV3296 |
Camera |
Front camera : 2M pixel CMOS color camera, FF Rear camera : 5M pixels CMOS color camera,AF |
|
GPS (optional) |
GPS, Beidou |
|
NFC (optional) |
Support ISO14443A/B、ISO15693、MIFARE、FeliCa |
|
Fingerprint (optional) |
Capacitive fingerprint sensor |
|
Wireless Data Communication |
WWAN(optional) |
4G Full Netcom |
Wi-Fi |
IEEE 802.11 ac/b/g/n,2.4G/5G dual band Wi-Fi |
|
Bluetooth |
BT4.0 |
|
Accessories |
Standard |
Power Adaptar×1 |
Optional |
Handle Strap, Extension Docking (USB2.0, Power charging, RJ45, RS232), Wall-mount, Vehicle mount |
Hexa-core high-performance processor and 12000mAh durable high-capacitu battery can be used from morning to night,allowing you to create and entertain.10.1" full-fit TFT color screen making the picture more vivid and exciting.Powerful,easy to use,flexible and versatile.It is designed for your various preferences such as manufacturing management,logistics warehoouses,government inspection,health management,store management,engineering measurement.
i2 is a new generation of high performance, multifunctional PDA launched by iMACHINE, with fully performance and experience feeling. The screen is 5.5inch HD, which is portable and comfortable to hold. It has more stable connection, richer match, super industrial protection performance, fully meet the needs of industrial applications. i2 is perfectly suit to many scenarios, such as logistics, express, warehouse inventory, manufacturing, retail e-commerce, public utilities, asset management etc. The goal is to improve the operation and management level with efficiently data collection.
i2H is a new generation of high-performance and multifunctional medical mobile data terminal launched by iMACHINE. It adopts a high-performance eight core processor and integrates various functions such as high-performance barcode scanning, UHF ultra-high frequency, pupil light, camera, etc. The configuration is first-class and the functions are diverse. The lightweight body is matched with a 5.5-inch full HD screen, with a beautiful appearance, portable and comfortable grip, sturdy and durable, and easy to operate. It uses antibacterial and alcohol resistant disinfection materials, which are more suitable for medical needs. i2H is perfectly suitable for various application scenarios such as mobile healthcare, admission management, medical order execution, sample sampling, information query, drug supervision management, SPD material management, drug traceability, dispensing management, and medical waste management, helping medical staff efficiently obtain medical information and improve work efficiency.
iMACHINE TK02 is a slim, portable, high-performance, highly stable, rugged, feature-rich intelligent handheld data terminal that can be operated by one hand. It aims to provide more dexterous mobile productivity solutions for special scenes, not only has a lightweight and compact body design but also has the flagship configuration and performance. iMACHINE TK02 can be widely used in logistics express, retail, manufacturing, public utilities and other fields, can be used as retailers super inventory handheld PDA, can also be used as a logistics express scanning gun.
Stable and Versatile Monitor Industrial and Stylish Exterior Design Support HDMI and VGA Format Input Wall Mounted Design Support USB and Speaker Interface Easy to Disassemble and Assemble
●Flexible InstallableTouch Monitor ●Industrial and Stylish Exterior Design ●Support HDMI and VGA Format Input ●Wall Mounted Design that Meets VESA Standards ●Support USB and Speaker Interface ●Modular Design, Easy to Disassemble and Assemble
●Stable and Durable Perfect Partner ●Compatible with More High-performance Processors ●Industrial and Stylish Exterior Design ●Plenty of Peripheral Support and Rich I/O Interface ●Wall Mounted Design that Meets VESA Standards ●Modular Design, Efficient User Service and Extendable 2nd Display
iMACHINE PD01 PLUS is a high-performance and highly reliable industrial grade intelligent handheld data terminal, equipped with Android 11.0 operating system and extremely fast processor, supporting rich and comprehensive function options, such as barcode scanning, NFC, PSAM, HD camera, etc., with excellent performance and strong industry adaptability. It is widely used in logistics, retail, warehousing, medical, electric power, one card, parking fee, government projects and other applications to help customers quickly realize information management and improve the efficiency of business operations.
