1.High performance, low power processor 2.15.6” FHD touch screen + 10.1” HD optional 3.Robust alloy base with topline hole 4.Anti-interference touch screen
Read More
1.Quad-core 2.0GHz Cortex-A55 high-performance processor 2.15.6” FHD touch screen + 10.1” HD optional 3.Anti-interference touch screen 4.Robust alloy base with topline hole
Read More
iMACHINE i1 PLUS is a new generation of high-end flagship intelligent handheld intelligent data terminal launched by iMACHINE. After the careful research and developing of professional team, the ultimate high performance and practicality are perfectly integrated. The thin and light body is equipped with a 6-inch FHD+ and 3D micro-curved full HD screen, it leads the trend of the high-end mobile data terminal with high-performance configuration that pursues excellent productivity and leads the industry in all orientations. iMACHINE i1 PLUS is perfectly suitable for application scenarios in many industries such as logistics express, warehousing inventory, manufacturing, retail e-commerce, public utilities, asset management, etc. Helping customers efficiently collect data to improve operation and management level.
Read More

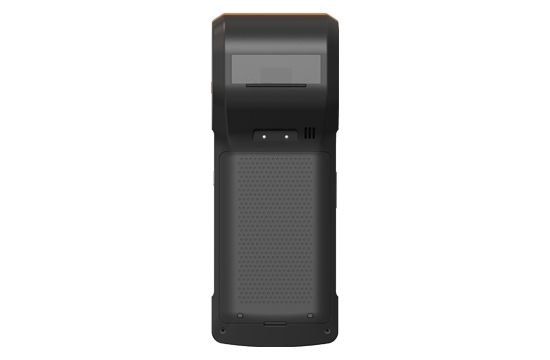

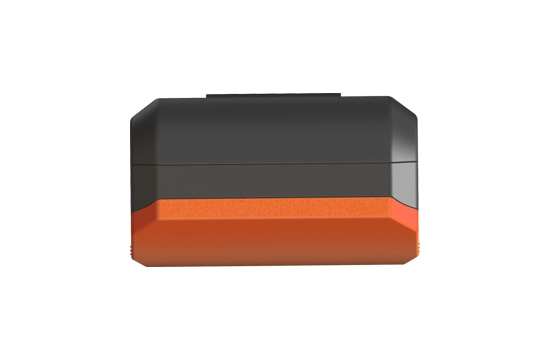

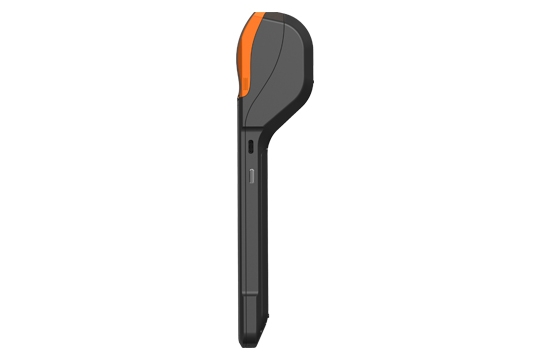

The new i2 smart handheld data terminal has been re-launched. It utilizes powerful data collection features that can be adapted to a variety of enviro
● Good Partner of Digital Operation
● High Speed Printer and Paper Free Channel
● 6” Large Screen with Narrow Bezel
● 4G Full Network and 2.4GHz & 5GHz Wi-Fi
● 8MP AF Rear Camera and Professional Laser Scanner Optional
● Built in PSAM Slot and NFC Module
Product Features:
● Good Partner of Digital Operation
● High Speed Printer and Paper Free Channel
● 6” Large Screen with Narrow Bezel
● 4G Full Network and 2.4GHz & 5GHz Wi-Fi
● 8MP AF Rear Camera and Professional Laser Scanner Optional
● Built in PSAM Slot and NFC Module
Product parameters:
|
Performance Characteristics |
CPU |
Cortex-A53 Quad Core 2.0GHz |
|
|
OS |
Android 13.0 |
||
|
Memory |
2GB RAM+32GB ROM 3GB RAM+32GB ROM (optional) |
||
|
SIM Card Slot |
1 x SIM Card |
||
|
PSAM Card Slot |
1 x PSAM Card |
||
|
Expansion Storage |
1 x Micro SD Card (up to 64GB) |
||
|
Physical Characteristics |
Display |
5.93”HD+ IPS Display, 720×1440 Capacitive multi-touch |
|
|
Battery |
Unremovable Lithium Battery, 7.6V/2450mAh |
||
|
Dimensions |
224×85×19mm |
||
|
Weight |
375g |
||
|
Ports |
1 x Type C，USB 2.0，Support OTG |
||
|
Expansion Ports |
2Pin Charging Port POGO PIN |
||
|
Keys |
1×Power Key，1×Volume (+/-) Key |
||
|
Notification |
Tone |
||
|
Audio |
Speaker, Microphone |
||
|
Sensor |
G-sensor |
||
|
Printer |
Built-in 58mm Thermal Printer Print Speed: 70mm/s Paper Roll: Φ40mm |
||
|
Data Capture |
Scan Engine |
1D and 2D Barcodes Reader (optional) Newland CM47 |
|
|
Camera |
Rear 8MP AF Camera，With Flash LED, Support 1D/2D |
||
|
NFC |
Support ISO15693, ISO14443A/B, Mifare card, Felica card |
||
|
Network Connection |
Wireless WAN |
Eurasian |
4G:B34/B38/B39/B40/B41/B1/B3/B5/B7/B8/B20/B28A/B28B 3G:B1/B5/B8 2G: 850/900/1800/1900 |
|
American |
4G:B38/B41/B1/B2/B3/B4/B5/B7/B12/B17/B19/B26/B28A/B28B/B66 3G:B1/B2/B4/B5/B8 2G: 850/900/1800/1900 |
||
|
Wireless LAN |
2.4GHz & 5GHz dual-band Wi-Fi, support 802.11r fast roaming IEEE 802.11 a/b/g/n |
||
|
Wireless PAN |
BT5.3 + BR/EDR + BLE |
||
|
GPS |
GPS L1, GLONASS, Beidou, Galileo |
||
|
User Environment |
Operating Temp. |
-10℃ ～+50℃ |
|
|
Storage Temp. |
-20℃ ~ +60℃ |
||
|
Charging Temp. |
0℃ ~ +45℃ |
||
|
Humidity |
5%-95% RH (No condensation) |
||
|
Accessories |
Standard |
Power Adaptor×1, USB Cable×1 |
|
|
Optional |
Cradle |
||
Previous :
AP02 Mobile POS TerminalNext :
K9 Mobile Payment Terminal
AP02 Mobile POS Terminal
1.Built-in 58mm thermal receipt printer 2.5 inches 480P capacitive touch 3.3G full network and 2.4GHz Wi-Fi 4.2MP/5MP rear camera 5.6000mAh high-capacity battery
K9 Mobile Payment Terminal
1. Quad-Core CPU + Secure Android OS 2. Dual Cameras, read 1D & 2D codes within 1 second 3. Support all payment methods 4. Support 4G LTE, WIFI, Bluetooth, GPS
K10 Mobile POS Terminal
·Modern appearance with streamlined design and slim body (19mm); ·6-inch high-definition touch screen; ·Support multiple mainstream payment methods; ·Dual card design, supporting 4G full network connectivity, WIFI, Bluetooth, GPS; ·Enhanced performance, user-friendly interface, and fast response.
AP12S Mobile POS Terminal
● Business Scenario Generalists ● Octa-core 2.0GHz Processor and Android 13 OS ● Built-in 58mm Thermal Printer with 80mm/s High Speed ● Interfaces are designed with Rubber Plugs to Prevent Water and Oil ● 7.7V/3000mAh Removable Lithium Polymer Battery ● Built in Professional Scan Engine, PSAM Slot, NFC module
K9 Mobile Payment Terminal
1. Quad-Core CPU + Secure Android OS 2. Dual Cameras, read 1D & 2D codes within 1 second 3. Support all payment methods 4. Support 4G LTE, WIFI, Bluetooth, GPS
A2 Android Desktop POS Terminal
● Digitalized Retail New Experience ● Quad-core 2.0GHz ARM Cortex-A55 High-performance Processor ● Full Aluminum Alloy Build ● 15.6”Ultra-Slim Framed FHD Display ● Foldable Design ● Plenty of Peripheral Support and Rich I/O Interface
P2 Smart Desktop Terminal （Windows）
●Stable and Durable Perfect Partner ●Compatible with More High-performance Processors ●Industrial and Stylish Exterior Design ●Plenty of Peripheral Support and Rich I/O Interface ●Wall Mounted Design that Meets VESA Standards ●Modular Design, Efficient User Service and Extendable 2nd Display
i1 PLUS Smart Handheld Data Terminal
iMACHINE i1 PLUS is a new generation of high-end flagship intelligent handheld intelligent data terminal launched by iMACHINE. After the careful research and developing of professional team, the ultimate high performance and practicality are perfectly integrated. The thin and light body is equipped with a 6-inch FHD+ and 3D micro-curved full HD screen, it leads the trend of the high-end mobile data terminal with high-performance configuration that pursues excellent productivity and leads the industry in all orientations. iMACHINE i1 PLUS is perfectly suitable for application scenarios in many industries such as logistics express, warehousing inventory, manufacturing, retail e-commerce, public utilities, asset management, etc. Helping customers efficiently collect data to improve operation and management level.
